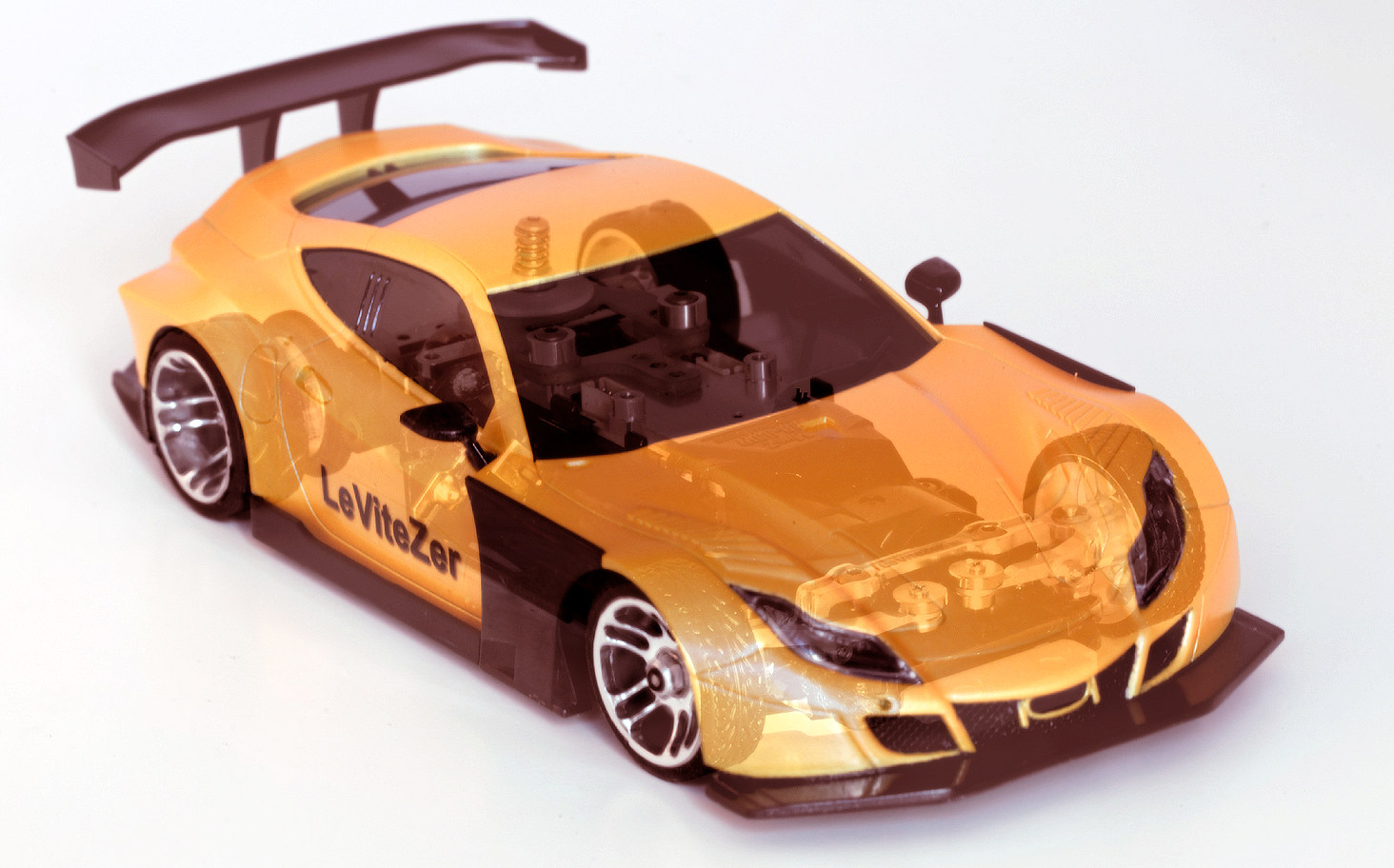

LeViteZer magnetic anti-roll suspension system makes your Mini-Z MR-03/MR-03VE levitate trough the track faster than ever.
Magnet controlled front suspension for Kyosho Mini-Z MR-03.

The LeViteZer are designed so you can use it on different manufacturers option front ends, as long as its based on the regular MR-03 suspension with fixed lower arm.

The product consists of the following parts
- Upper arms
- Bottom magnet plate
- Magnets in different size and strength

Code: MR03LVZ001 (LEVITEZER Anti-Roll Front Suspention For Mini-Z)

How does it work?
Basically you have two magnets locate in the stock spring position on the MR-03 in the chassis.
These are mounted on a plate in opposite direction of each other.
Then you have the upper arm, where two magnets are attached on the end.
These two magnets are also in opposite direction of eachother.
The lower magnet are opposite of the one mounted in the chassis.
The force of the magnet in the chassis, will push the magnet on the arm away.
This creates a magnet “cushion” that again acts like a suspension spring.
Since the magnets on the arms are mounted in opposite of eachother, the assembly will also have anti roll bar effect.
When the suspension compresses on one side, the arm goes down, and as soon as the upper magnet on the arm that lowers
are inline with the lower magnet on the other arm, it will start to pull it down.
The setup work is quite easy, but the magnets are strong and can give you some headache under assembly.

Also available are the additional magnets:
code: MR03LVZ002 (LEVITEZER Additional Magnets For Anti-Roll Suspention)

At the following link you can find the instruction manual

Source: LeViteZer
LeViteZer is available at: Minizracing
